Etapa Amplificadora (CIR148S)

Written by: Newton C. Braga
Category: Banco de circuitos

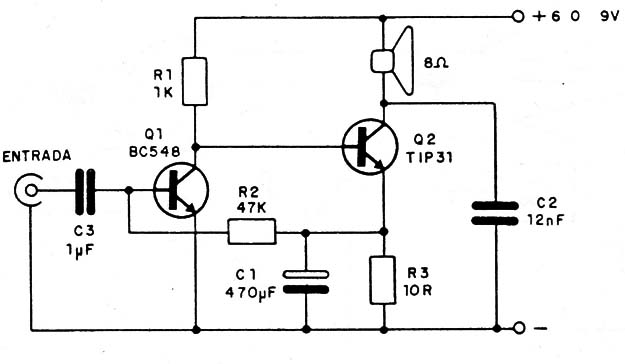

Una etapa de poca potencia puede usarse en radios experimentales intercomunicadores, seguidores de señales, alarmas, juegos, etc. El transistor Q2 eventualmente habrá que montarlo con un pequeño disipador de calor.
