Probador de transistores y diodos (CIR18435S)

Written by: Newton C. Braga
Category: Banco de circuitos

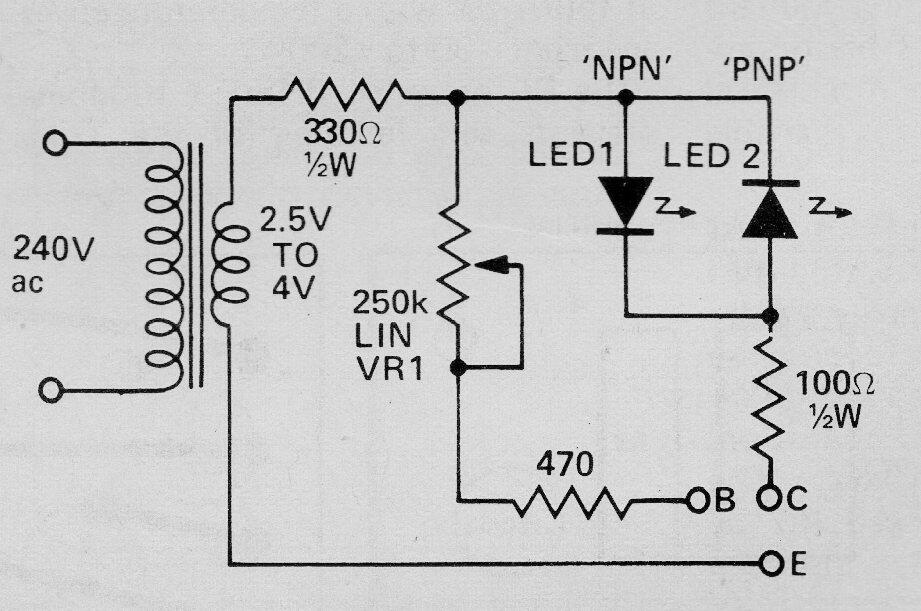

Este sencillo comprobador de diodos y transistores también puede ser alimentado por la red de 110 V si el transformador tiene un primario para esta tensión. Se puede usar un transformador de corriente de 100 a 250 mA y los diodos son comunes.



Probador de transistores y diodos
Probador de transistores y diodos | Haga click en la imagen para ampliar |
