Multi Paso Power Booster para Motores DC (MEC044S)

Written by: Newton C. Braga
Category: Mecatrónica - Robótica - Biónica - Inteligencia Artificial

El circuito MEC043E puede ser alterado para utilizar múltiples baterías de refuerzo, lo que permite al operador o al circuito probar diferentes aumentos de tensión. Esto se puede lograr como se muestra en la Figura 1.

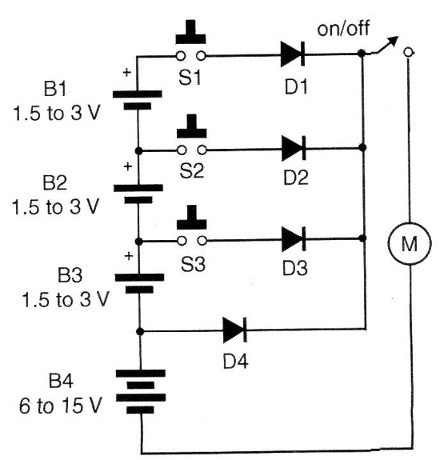

Figura 1 - El refuerzo
Figura 1 - El refuerzo





Recuerde que las baterías de refuerzo no deben estar conectadas durante largos intervalos de tiempo, ya que permiten que el motor drene una corrienten que sea más alta que la nominal.



Para períodos cortos de funcionamiento (unos segundos), esto es aceptable, pero puede causar que el motor se sobrecaliente durante períodos más largos.



Los diodos son 1N4002 para motores de hasta 1 A y 1N5404 para motores de hasta 3 A.
