Diodos de protección ESD ESD2CANx-Q1 de Texas Instruments

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

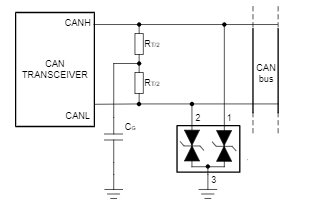

Los diodos de protección ESD ESD2CANx-Q1 de Texas Instruments son diodos automotrices bidireccionales de dos canales para protección de interfaz de red de área de controlador (CAN). Estos diodos de protección están clasificados para disipar los ataques ESD de contacto especificados en la norma automotriz ISO 10605. Los diodos ESD ESD2CANx-Q1 presentan una capacitancia IO baja típica de 2,8 pF por canal y una distribución de pines para adaptarse a dos líneas de bus CAN automotrices (CANH y CANL). Estos diodos de protección presentan una baja resistencia dinámica y un bajo voltaje de sujeción que permiten una protección a nivel del sistema contra eventos transitorios. Los diodos ESD ESD2CANx-Q1 tienen certificación AEC-Q100 para aplicaciones automotrices y están disponibles en un paquete de terminales SOT-23 de 3 pinos. Las aplicaciones típicas incluyen velocidad de datos flexible de red de área controlada (CAN-FD), CAN de baja tolerancia a fallas, CAN de alta velocidad y redes de control industrial.

Clique aquí para ver las hojas de datos
