Texas Instruments TDES4940 Deserializadores de puente

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

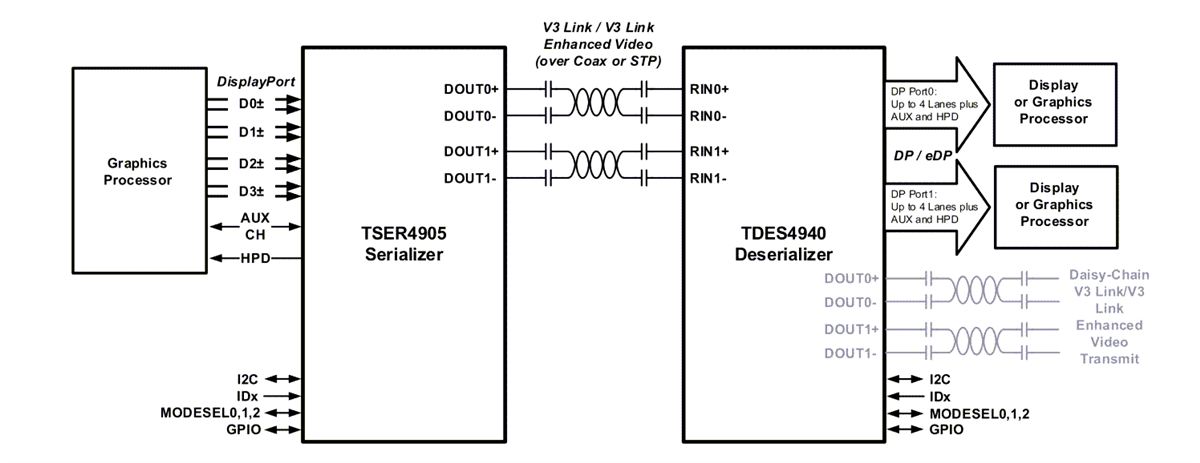

Los deserializadores de puente TDES4940 de Texas Instruments son vídeo mejorado V3Link™ para dispositivos de puente DisplayPort (DP)/DisplayPort integrado (eDP). Con un chipset, el TDES4940 recibe una interfaz serializada de alta velocidad a través de cables coaxiales o STP/STQ de 50 Ω de bajo costo. Los deserializadores de puente TI TDES4940 son dispositivos compatibles con VESA DP v1.4a/eDP v1.4b que admiten funciones avanzadas como los formatos HBR3 y SuperFrame. Los deserializadores facilitan resoluciones de vídeo 4K en color de 30 bits y superiores. V3Link Enhanced Video ayuda a transmitir datos de video y audio y control dúplex completo, incluidos datos I2C y GPIO en el mismo enlace. La consolidación de datos de video y el control sobre las líneas de video mejoradas de V3Link reducen el tamaño y el peso de la interconexión y simplifican el diseño del sistema. La EMI se minimiza empleando señalización diferencial de bajo voltaje, codificación de datos y aleatorización. Utilizando el modo V3Link compatible, el TDES4940 ofrece resoluciones de hasta 2K con profundidad de color de 24 bits a través de enlace simple/dual y compatibilidad con HDCP v1.4 cuando se combina con un serializador compatible con HDCP.

Clique aquí para ver las hojas de datos
