Texas Instruments TPS92621-Q1 Controlador LED de un solo canal

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

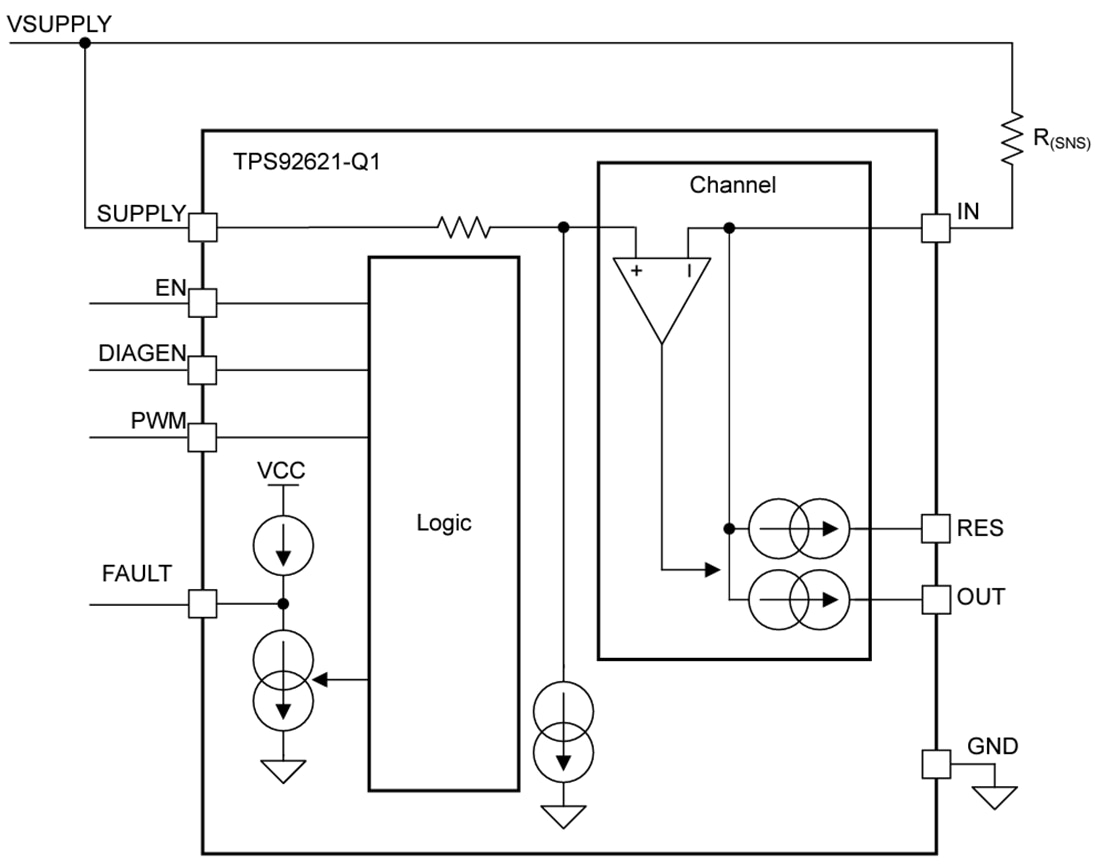

El controlador LED de un solo canal Texas Instrument TPS92621-Q1 incluye un diseño de gestión térmica único para reducir el aumento de temperatura del dispositivo. El TPS92621-Q1 es un controlador lineal alimentado directamente por baterías de automóviles con grandes variaciones de voltaje para producir cargas de corriente totales de hasta 300 mA. La resistencia en derivación se utiliza para compartir la corriente de salida y disipar la potencia del controlador. Las características completas de diagnóstico del dispositivo incluyen un LED abierto, un circuito LED en cortocircuito a GND y protección contra sobrecalentamiento del dispositivo. La función de falla única de Texas Instruments TPS92621-Q1 puede funcionar junto con otros controladores LED, como los dispositivos TPS9261x-Q1, TPS9262x-Q1, TPS9263x-Q1 y TPS92830-Q1, para cumplir con diferentes requisitos.

Clique aquí para ver las hojas de datos
