Módulo de evaluación para PGA855EVM de Texas Instruments

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

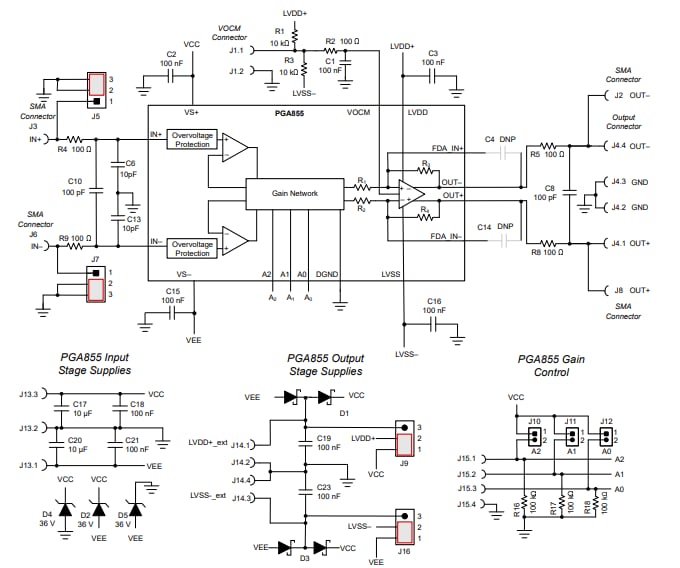

El módulo para el PGA855EVM está disponible en Texas Instruments y está diseñado para proporcionar al amplificador deseado un programa de alta precisión para el PGA855 con diferentes diferencias. O amplificador PGA855 con transistores de entrada super-beta que fornecem tensão de deslocamento de entrada ultrabaixa, desvio de deslocamento, corrente de polarização de entrada, Ruído de Tensão de Entrada. Este módulo de fuente de alimentación utiliza fuentes de alimentación (±4V (8V) y ±18V (36V)) y dichas (±2,25V (4,5V) y ±18V (36V)).

Clique aquí para ver las hojas de datos
