Controlador LED de alta corriente LP5866T de Texas Instruments

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

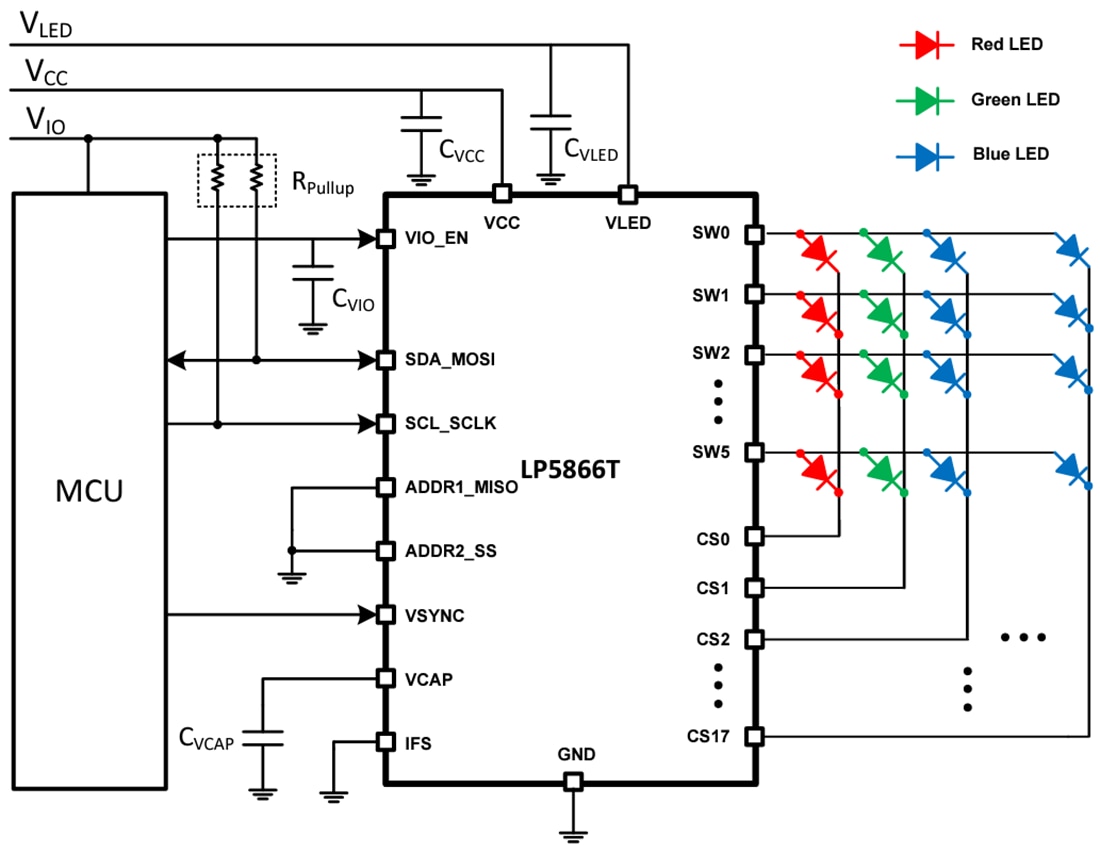

El controlador LED de alta corriente LP5866T de Texas Instruments integra 18 sumideros de corriente constante con N (N = 6/8/11) MOSFET de conmutación para admitir N × 18 puntos LED o N × 6 LED RGB. El LP5866T integra seis MOSFET para hasta 108 puntos LED o 36 LED RGB. El LP5866T admite métodos de atenuación analógicos y PWM. Para atenuación analógica, cada punto LED se puede ajustar en 256 pasos. Para la atenuación PWM, los generadores PWM integrados configurables de 8 o 16 bits permiten un control de atenuación suave sin ruido audible. Cada punto LED también se puede asignar arbitrariamente a un grupo PWM de 8 bits para lograr un control de atenuación conjunto.

Clique aquí para ver las hojas de datos
