Conector micro coaxial para 12G-SDI Hirose (COMD011S)

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

Nuestro punto culminante para los componentes es la serie de microconectores coaxiales de 75 ohmios a 12G-SDI y pueden operar a frecuencias de hasta 12 GHz. Disponibles en forma compacta pueden usarse en procesos de ensamblaje automático. Este artículo se basó en la hoja de datos de Hirose.










Este artículo se preparó en base a la información disponible en la hoja de datos del componente a la que se puede acceder en: https://www.mouser.com/datasheet/2/185/D_FL75_catalog-1947963.pdf. Para comprar este producto a través de Mouser Electronics y para obtener más información, como la disponibilidad en stock, visite: https://www.mouser.com/new/hirose/hirose-dfl75-connectors/

Los conectores de esta serie son compatibles con equipos de radio y video terminados para cable coaxial de 75 ohmios, como se sugiere en la figura 1.

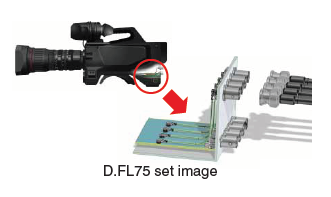

Figura 1 - Aplicación de video
Figura 1 - Aplicación de video





Entre las aplicaciones, además de las cámaras de video, también podemos mencionar los equipos médicos.

En la figura 2 tenemos un diagrama de funciones indicado por el fabricante.



Figura 2 - Diagrama de funciones
Figura 2 - Diagrama de funciones





En la hoja de datos se pueden encontrar tablas e información importante para su uso, además del código de adquisición, según la aplicación.

En la figura 3 tenemos una herramienta de extracción indicada por el fabricante.



Figura 3 - Herramienta de extracción
Figura 3 - Herramienta de extracción | Clique na imagem para ampliar |





Esta herramienta está recomendada para la extracción para no dañar el componente. Ver más en la ficha técnica, donde también encontramos información sobre el uso del conector.
