Supercapacitores Taiyo Yuden (COMD023)

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

Destacamos en este artículo la línea de supercapacitores RSEL de Taiyo Yuden que encuentran aplicaciones en diversos campos, como suministro de energía de respaldo, mantenimiento de niveles de energía, almacenamiento de energía o fuente de energía para dispositivos pequeños. El artículo fue preparado con base en la información obtenida del sitio web de Mouser Electronics que hace que estos capacitores estén disponibles para la venta.

Los detalles para la compra y para la datasheet se pueden obtener en los links a continuación.

https://br.mouser.com/datasheet/2/396/Taiyo_Yuden_RSELT6852R7F20002_SS-2999765.pdf

https://br.mouser.com/new/taiyo-yuden/taiyo-yuden-rselt-supercaps/

En el segundo link también tenemos disponible un video que muestra el uso de estos capacitores en un sistema de respaldo para el suministro de energía.

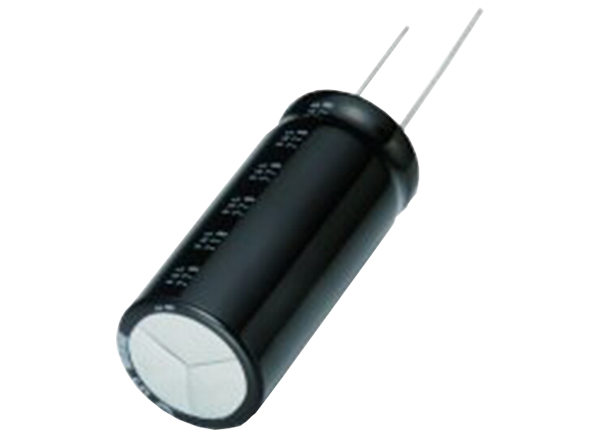

Los capacitores de línea RSEL de Taiyo Yuden están disponibles en capacitancias de 3,3 F a 50 F con una tensión máxima de 2,7 V. El aspecto de este componente se muestra en la figura 1.



Figura 1 - Carcasa
Figura 1 - Carcasa





Destacamos también la ESR máxima a 1 kHz que es de 50 m Ohms y la banda de temperatura de funcionamiento de -40 a +85º C.

Para su uso en diferentes tipos de aplicaciones, los supercapacitores se suministran con discriminación de categoría con diferentes códigos. Así, tenemos una tabla con las diferentes categorías:

- Coches con códigos A y C

- Industriales con código B

- Doctor – con códigos M y L

- Consumo con código S

La información detallada sobre estas categorías de aplicaciones se proporciona en la datasheet a la que se puede acceder a través del link.
