Conectores de carga móvil Blind Mating de TE Connectivity (COMD027S)

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

Un punto crítico en el proyecto de cargadores de baterías de tamaño medio, como los que se utilizan en aplicaciones como robots y vehículos autónomos en entornos industriales como almacenes, es el conector de la batería. El producto que estamos destacando tiene exactamente este propósito.

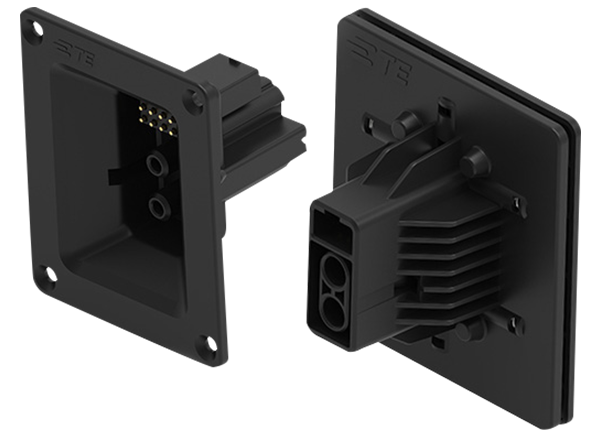

Nos ocupamos de los Conectores de Carga Móvil Blind Mating (conexión ciega) de la TE Connectivity (TE), que están destinados a robots móviles más pequeños y vehículos autónomos que normalmente se usan en entornos de almacén. Los robots móviles autónomos (AMR) se utilizan principalmente para el manejo de materiales (recolección, movimiento, almacenamiento y clasificación) en el espacio de automatización de almacenes.

Los conectores de carga móvil Blind Mating de la TE están disponibles en opciones de 2 y 3 contactos de energía con hasta ocho contactos de señal para facilitar la instalación y los tiempos de ciclo de retrabajo. La serie ofrece un alto ciclo de vida útil y sirve como una solución modular que admite diferentes configuraciones, datos y sensores.










Entre las aplicaciones sugeridas, destacamos:

- Carga de Robots Móviles Autónomos/Vehículos Guiados Automatizados (AMR/AGV)

- Carga de batería general

- Industrial

- Hospital

- Minorista

- Doctor



Como aspectos más destacados, el fabricante indica:

- Design robusto para un ciclo de vida prolongado

- Proyectado para un mínimo de 12.000 ciclos de conexión

- Contactos de potencia de baja fuerza de inserción

- Contactos de señal de sonda de resorte

- Flexibilidad de conexión

- 2 y 3 opciones de contactos de potencia

- Hasta 50A y hasta 125V

- Hasta 40A por línea hasta 100V

- Terminales en hilo de cobre trenzado 10AWG o 8AWG

- Primer contacto, último contacto para uso en conexión a tierra, habilitación del sistema o aplicaciones que requieren cargar dos secuencias de baterías de forma independiente

- Seguridad táctil segura en los contactos para mayor seguridad extra si es necesario volver a trabajar

Se puede obtener más información a través del siguiente link.

https://br.mouser.com/new/te-connectivity/te-blind-mating-mobile-charging-connectors/
