Maxim Integrated MAX25606 Administrador de matrices de LED de 6 conmutadores

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

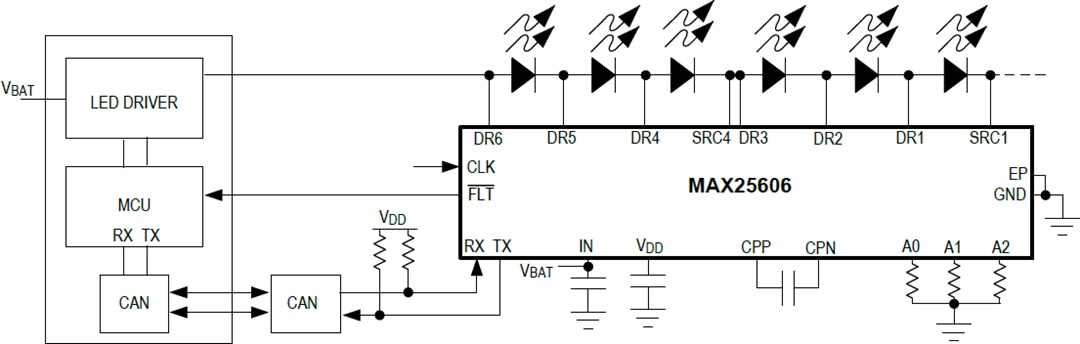

Mouser Electronics recomienda el administrador de matriz de 6 conmutadores Maxim Integrated MAX25606 para iluminación de LED, optimizado para aplicaciones de iluminación automotriz de cadena simple o doble. El MAX25606 integra seis interruptores MOSFET de canal N controlados individualmente. Cada interruptor tiene una resistencia de 0.2Ω y está clasificado para soportar 16V. Se puede utilizar una sola fuente de corriente para alimentar todos los LED conectados en serie. Los LED individuales se pueden atenuar encendiendo y apagando los interruptores de derivación de cada LED. El MAX25606 también se puede configurar en aplicaciones de dos cadenas con tres interruptores en serie por cadena. Cada interruptor se puede conectar a uno, dos o tres LED en serie. Este dispositivo también permite la conexión en paralelo de dos interruptores para evitar los LED de alta corriente. El MAX25606 incluye una bomba de carga interna que suministra energía a la unidad de compuerta para los interruptores de derivación LED. El MAX25606 tiene una interfaz de comunicación UART (receptor asíncrono universal). Cada interruptor se puede encender, apagar o modular PWM con 12 bits de ajuste del ciclo de trabajo PWM. Las transiciones entre dos configuraciones de PWM diferentes pueden ocurrir instantáneamente o se puede aplicar una transición de desvanecimiento logarítmica. El algoritmo de desvanecimiento logarítmico está integrado en el MAX25606 y solo requiere un comando de software. Este dispositivo cuenta con protección LED abierta, así como indicador LED de falla abierta y corta a través de la interfaz en serie. Leer más:

Clique aquí para ver las hojas de datos
