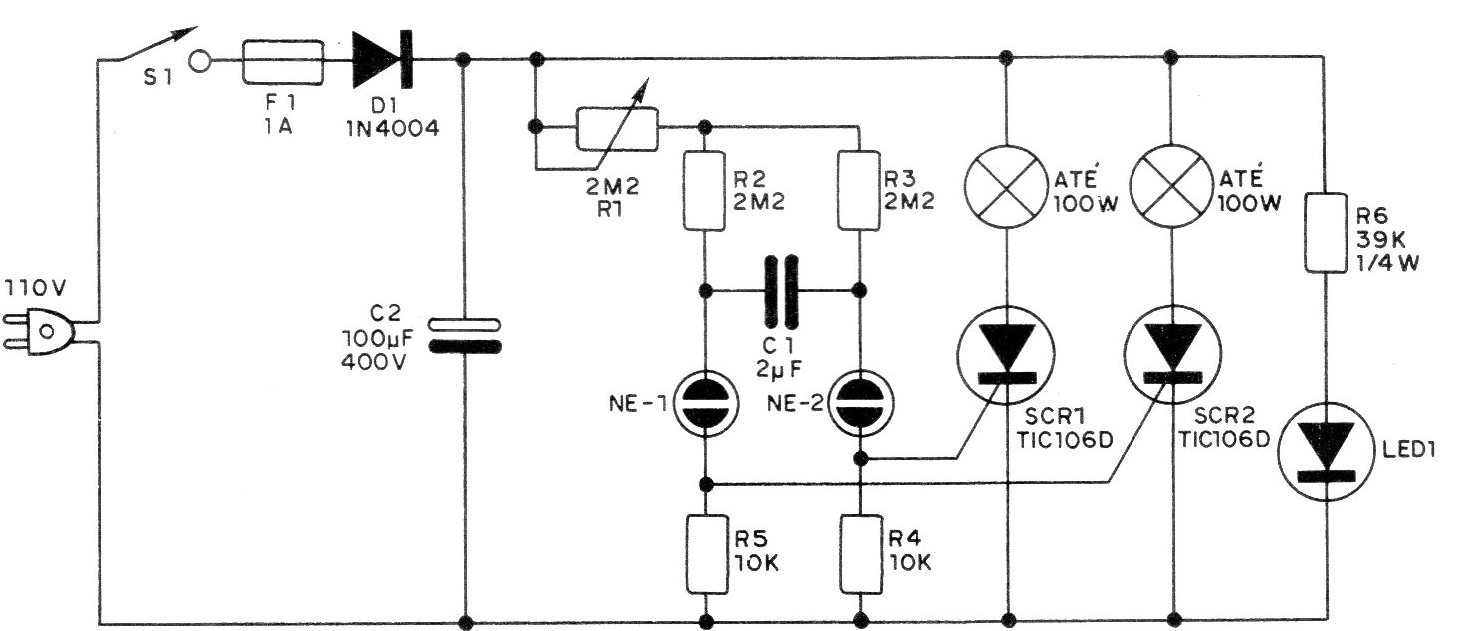

El parpadeante que presentamos fue encontrado en una publicación de 1982, siendo mostrado en la figura. Lo que tenemos es un multivibrador que utiliza dos lámparas neón como elementos básicos, las cuales accionan dos SCRs del tipo TIC106D. La frecuencia de los intermitentes está determinada por el valor del capacitor C1, que puede tener capacidades entre 22 nF y 2 uF. Este capacitor es de tipo despolarizado, de poliéster, con una tensión de trabajo de al menos 400 V. Cada SCR puede alimentar 100 W de lámparas, en cuyo caso deben montarse en disipadores de calor. Si las bombillas de menos de 40 W, en total, en cada SCR, se alimentan, los SCR no necesitará un disipador de calor. El autor informa que, con una capacitancia de 2 uF a C1, el período de los intermitentes es del orden de 20 segundos. El potenciómetro P1 permite ajustar sensiblemente el intervalo de los intermitentes. Observamos que, por el uso de SCRs y de un diodo rectificador en la entrada, las lámparas se alimentan en apenas media onda. Su brillo en estas condiciones no es el máximo. Las lámparas de neón pueden ser del tipo NE-2H, y el LED sirve para indicar el funcionamiento del aparato.
