Somador Escalar (CIR5827S)

Written by: Newton C. Braga
Category: Banco de circuitos

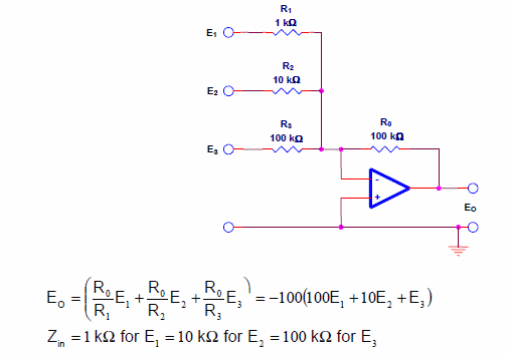

    En la figura tenemos un circuito sumador con entradas ponderadas según las resistencias usadas. Las fórmulas que muestran el comportamiento de este circuito están junto al diagrama. El circuito es de una documentación de Texas Instruments de 2016, pudiendo ser implementado prácticamente con cualquier tipo de amplificador operacional.
