Amplificador de 400 mW con el TL431 (CIR2165S )

Written by: Newton C. Braga
Category: Banco de circuitos

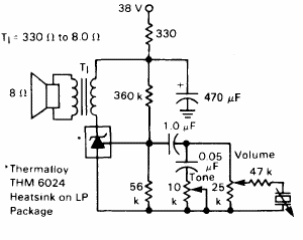

    Esta configuración diferente del Linear Databook de Motorola de 1990, utiliza un circuito integrado de referencia de tensión como amplificador. El transformador de salida puede ser del tipo encontrado en antiguas radios transistorizadas.
