Amplificador Con Compensación de Desviación (CIR1637S )

Written by: Newton C. Braga
Category: Banco de circuitos

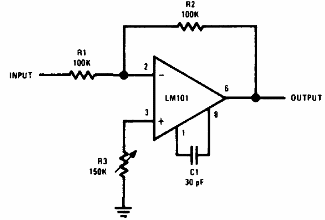

   Este circuito es del Linear Application Handbook de National Semiconductor de 1995. La técnica aplicada a un LM101 vale para otros operativos. El circuito debe ser alimentado por una fuente simétrica y la relación R2 / R1 determina la ganancia.
