Seguidor de señales (CIR5453S)

Written by: Newton C. Braga
Category: Banco de circuitos

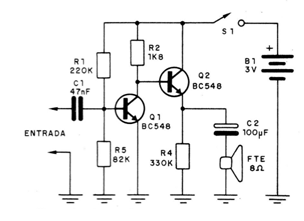

     Este simple seguidor de señales de dos transistores fue encontrado en una documentación de 1985, pero su circuito se puede montar fácilmente aún hoy. El circuito utiliza dos pilas pequeñas en la alimentación que sirve para seguir señales de audio.
