Detector Múltiple (CIR4902S )

Written by: Newton C. Braga
Category: Banco de circuitos

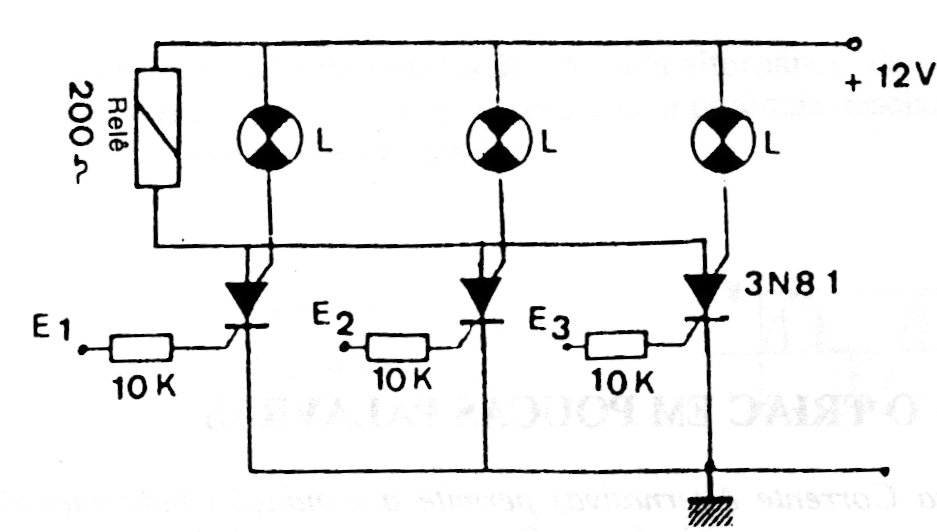

     Una señal en la conducción de cualquiera de los SCR hará que el SCR correspondiente sea accionado y con el relé. La lámpara correspondiente de señalización también se activará. El circuito puede ser adaptado para funcionar como un shield.




| Haga click en la imagen para ampliar |
