Shield de Relé con Dos Transistores (CIR3129S)

Written by: Newton C. Braga
Category: Banco de circuitos

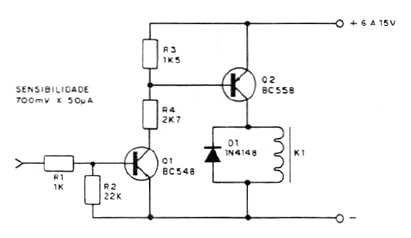

    Este circuito consiste en una versión sensible de Shield que requiere una corriente muy baja del microcontrolador. Con este circuito se puede disparar un relé de 50 mA con una corriente de entrada de sólo 50 uA. El circuito sirve para relés de 6 a 15 V con corrientes de bobina hasta 50 mA..Este circuito dispara con el nivel alto en la entrada. Con transistores BD136 podemos controlar solenoides hasta 500 mA.
