Monitor de corriente (CIR2830S)

Written by: Newton C. Braga
Category: Banco de circuitos

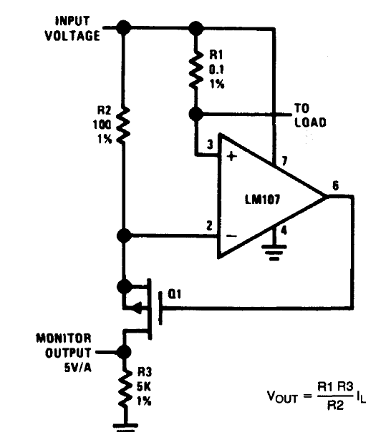

     El circuito mostrado en la figura fue sugerido por National Semiconductor en su Linear Applications Handbook de 1994. El circuito puede ser implementado con otros operacionales y la fuente de alimentación es simétrica.
