Central de efectos de sonido (CIR2307S)

Written by: Newton C. Braga
Category: Banco de circuitos

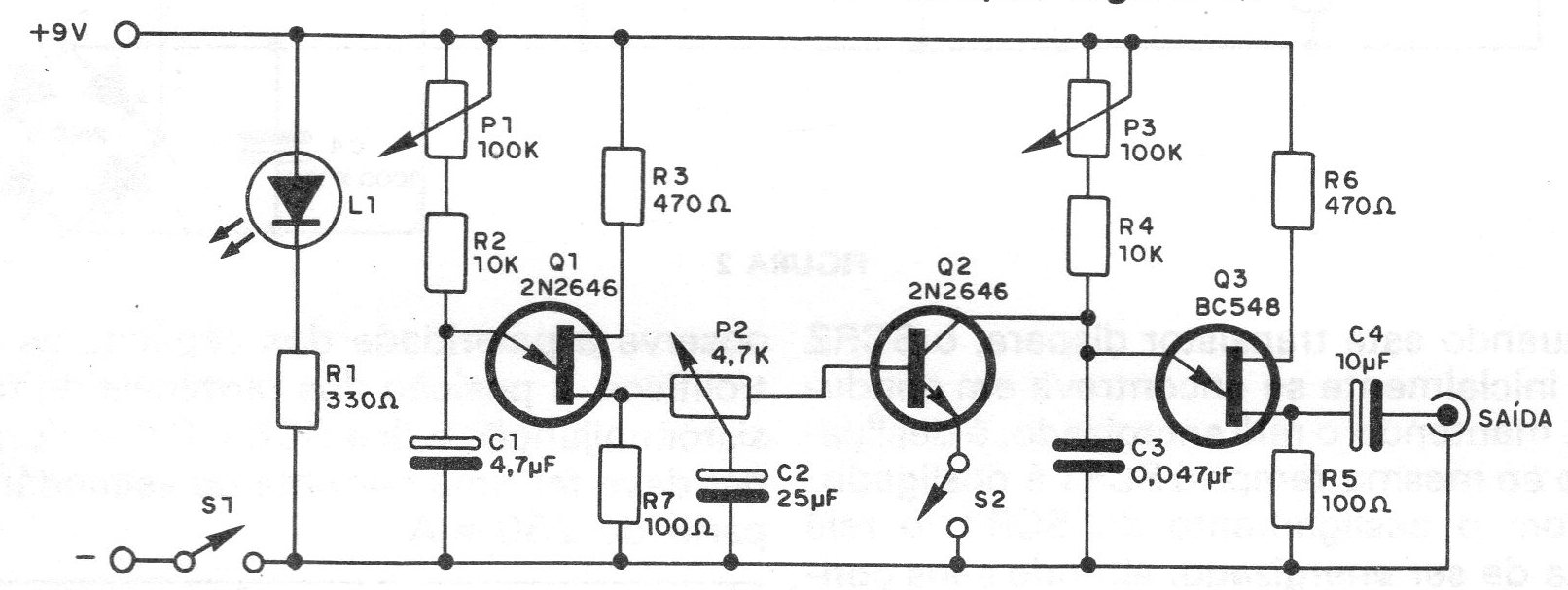

    Este proyecto fue encontrado en una documentación de 1980. Se trata de una central de efectos sonoros, un circuito simple con el que usted puede generar los más diversos sonidos en su equipo amplificador. Se utilizan dos osciladores de relajación con transistores unijuntura que funcionan de modo interdependiente. Los potenciómetros P1 y P3 controlan la frecuencia de los efectos y el potenciómetro P2 el modo de variación. La salida del aparato debe ser conectada a la entrada de su amplificador o bien a un mezclador si desea sobreponer sus señales a grabaciones, etc. El aparato es alimentado por una batería de 9V que tendrá bastante durabilidad ya que el consumo de corriente es bajo, y esta durabilidad aún puede ser aumentada si el LED es omitido. Este LED sólo sirve para indicar que la central de efectos está conectada.
