Etapa de Audio Híbrida de 1960 (CIR2565S)

Written by: Newton C. Braga
Category: Banco de circuitos

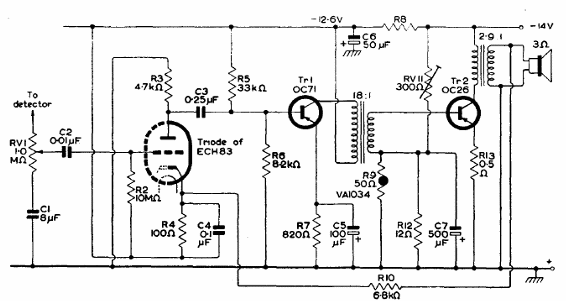

   Esta configuración de audio de televisores de la década de los 60 se encontró en un manual de referencia de transistores de Mullard. Los transformadores son los componentes críticos.
