Pedal Trémulo Para Guitarra (CIR2585S)

Written by: Newton C. Braga
Category: Banco de circuitos

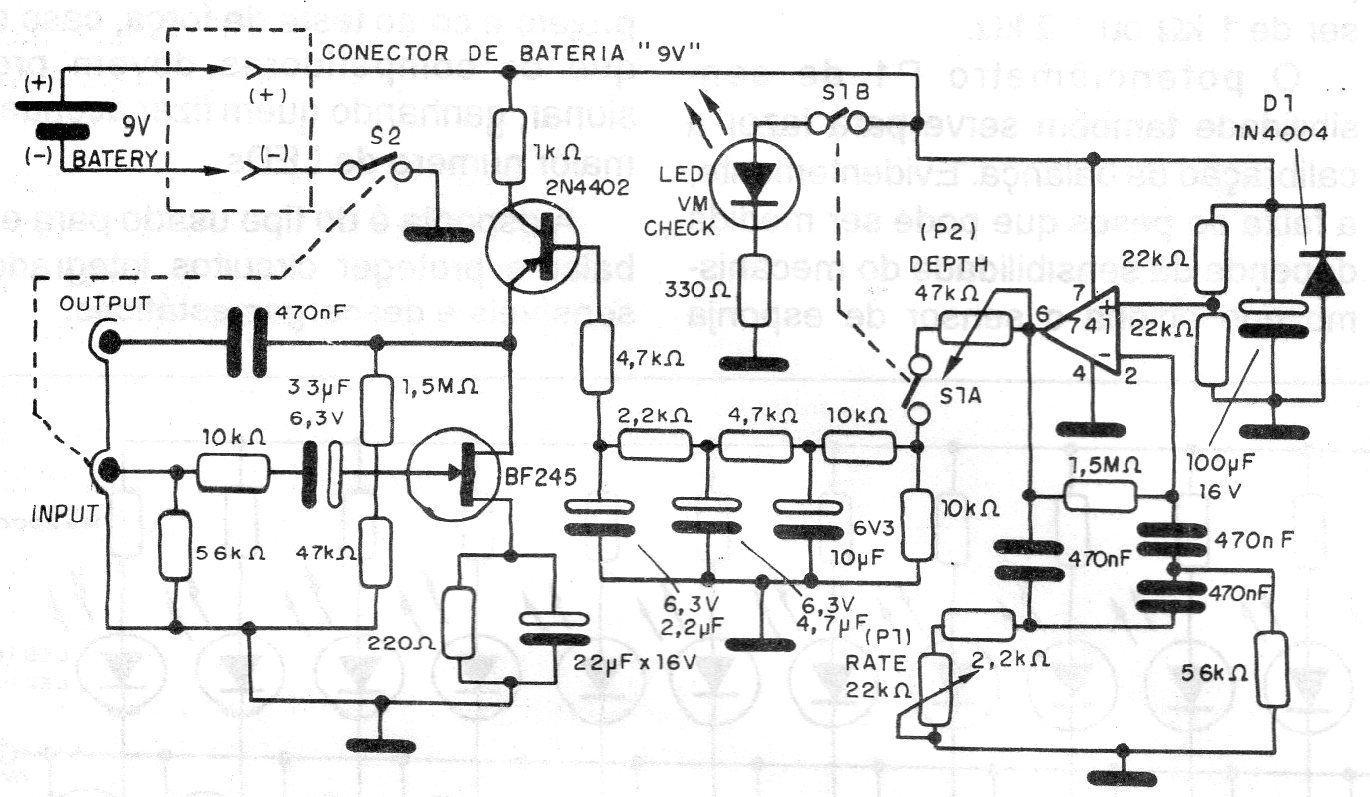

     Este circuito fue encontrado en una documentación de 1992, pero utiliza componentes discretos que todavía se pueden encontrar con facilidad en nuestros días. El circuito es alimentado por la batería y el cuidado se deben tomar con los cables de audio para que no se produzca la captación de zumbidos. El efecto es controlado por los potenciômetros.




| Haga click en la imagen para ampliar |
