Comparador de precisión LM3900 (CIR3918S)

Written by: Newton C. Braga
Category: Banco de circuitos

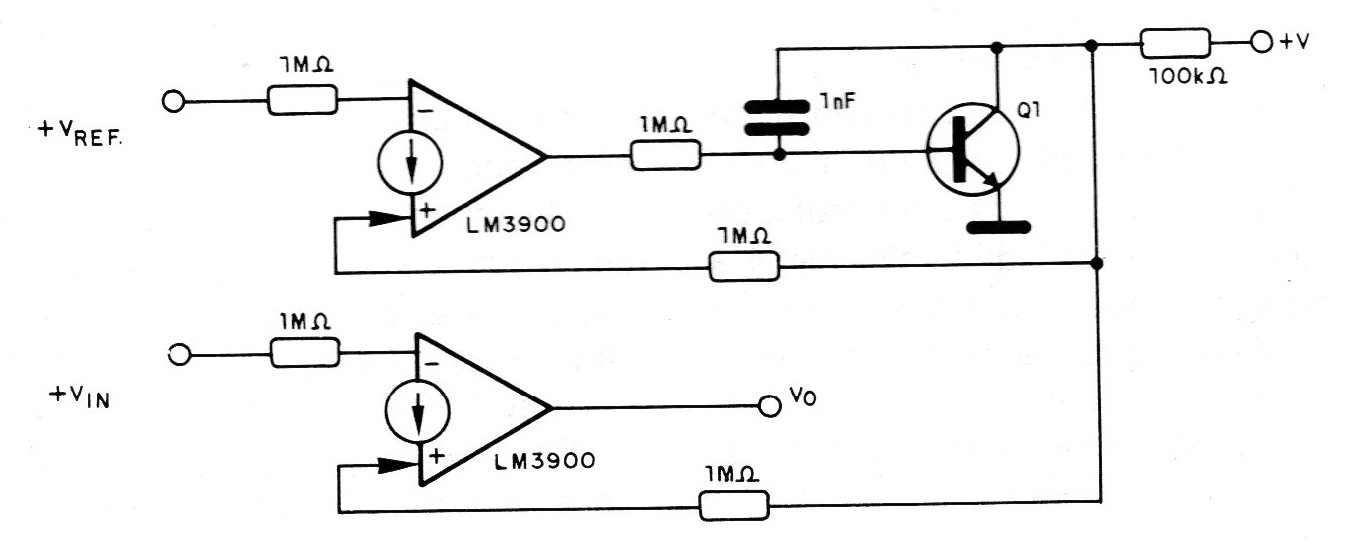

Una configuración de comparador con mayor precisión, utiliza dos amplificadores, se muestra en la figura. La precisión mayor se obtiene mediante el uso de entradas del mismo tipo, para la señal de referencia y para la señal a comparar.




| Haga click en la imagen para ampliar |
