Fuente regulada para banco (CIR23216S)

Written by: Newton C. Braga
Category: Banco de circuitos

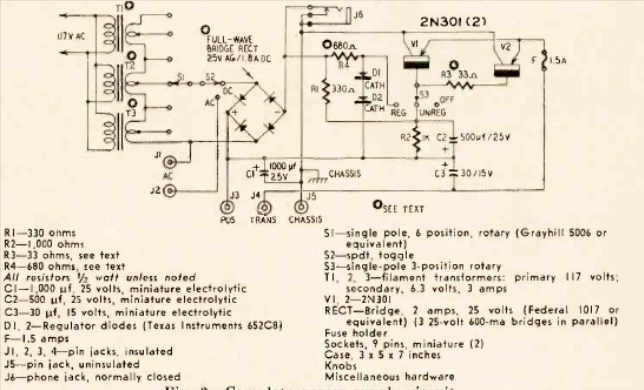

El mismo circuito que el anterior puede tener un paso regulador de voltaje. Así lo muestra el circuito de la Revista Radio Electrónica de octubre de 1957. El transistor de potencia es de esa época.
