Preamplificador Grabador (CIR23212S)

Written by: Newton C. Braga
Category: Banco de circuitos

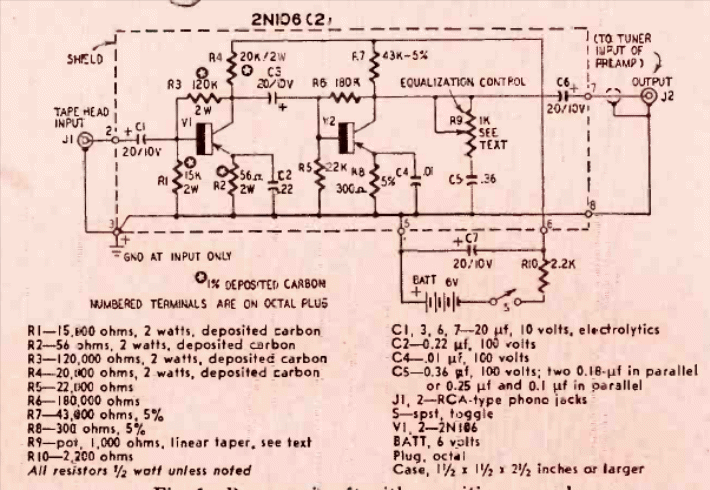

Este circuito de dos transistores se encontró en un artículo que describe su ensamblaje en la revista Radio Electronics de octubre de 1957. El circuito de dos transistores funcionaba con baterías.
