Amplificador de banda ancha (CIR23208S)

Written by: Newton C. Braga
Category: Banco de circuitos

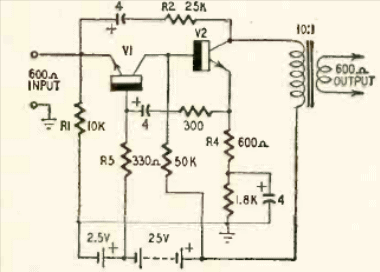

Esta etapa transistorizada de banda ancha fue sugerida en una revista Radio Electronics de agosto de 1957. El circuito tiene dos fuentes de tensión formadas por baterías.
