Receptor autoalimentado (CIR23181S)

Written by: Newton C. Braga
Category: Banco de circuitos

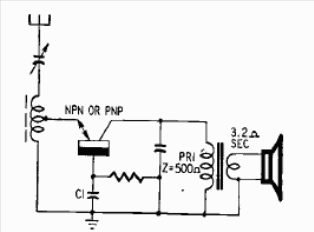

Este circuito de 1 transistor tiene la potencia para el transistor procedente de la propia señal capturada. El circuito tiene salida de altavoz y fue publicado en la revista Radio Electronics de abril de 1957.








CIR23181S
