Bocina de bicicleta (CIR23179S)

Written by: Newton C. Braga
Category: Banco de circuitos

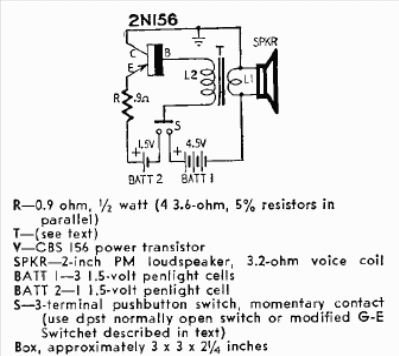

Este circuito de bocina de bicicleta muy simple no es más que un oscilador descrito en un montaje de la revista Radio Electronics de abril de 1957. La fuente de alimentación se realiza con una batería de 4,5 V.
