Amplificador para multímetro (CIR22988S)

Written by: Newton C. Braga
Category: Banco de circuitos

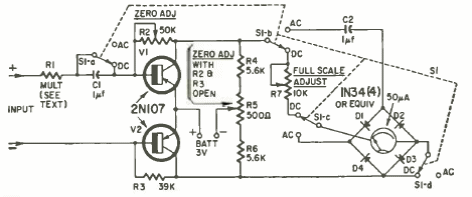

El propósito de este amplificador que encontramos en la revista Radio Electronics de octubre de 1952 es aumentar a 200 kohms/V la resistencia de entrada de un instrumento en la medida de tensión.
