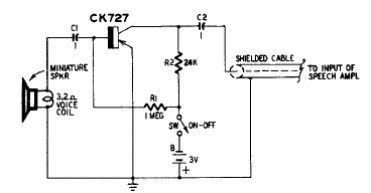

El propósito de este circuito es adaptar un parlante ordinario para que funcione como un micrófono. El circuito es de una documentación de los años 60 y el transistor es de germanio.
Altavoz como micrófono
CIR22928S
El propósito de este circuito es adaptar un parlante ordinario para que funcione como un micrófono. El circuito es de una documentación de los años 60 y el transistor es de germanio.
CIR22928S
