FI 50 KHz (CIR22846S)

Written by: Newton C. Braga
Category: Banco de circuitos

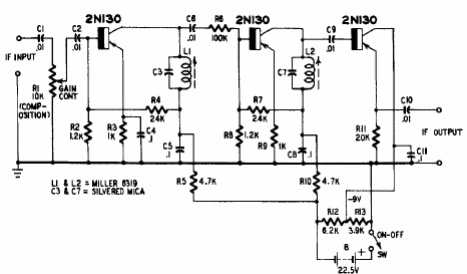

Utilizado en los receptores CW de la década de 1950, este tipo de circuito usaba transistores de germanio. El circuito tiene una excelente ganancia.



FI 50 KHz
FI 50 KHz
