Sintetizador de batería (CIR22806S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontrado en una publicación en inglés de la década de 1980, este circuito se puede construir con transistores equivalentes como el BC549. La señal debe aplicarse a un amplificador externo.

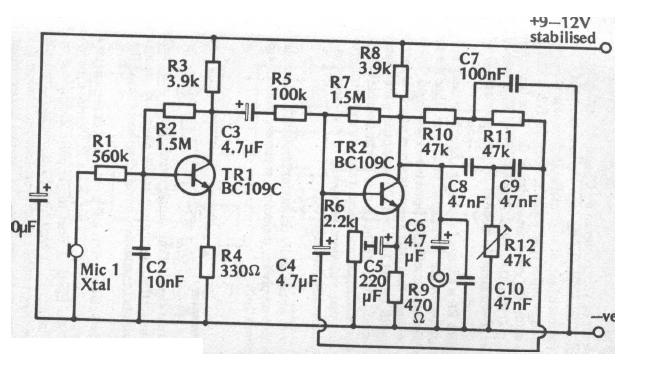

Sintetizador de batería
