Detector de gas y humo (CIR22801S)

Written by: Newton C. Braga
Category: Banco de circuitos

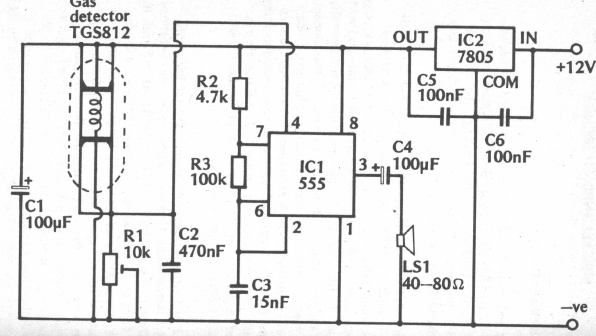

Este circuito de 1989 utiliza un sensor de gas de la época, que es difícil de encontrar en estos días. El circuito activa un oscilador que tiene como carga un altavoz de impedancia media.



Detector de gas y humo
Detector de gas y humo
