Bocina de dos tonos (CIR22798S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito aparece de otras fuentes en este sitio. Esto fue tomado de una documentación en inglés de la década de 1980. La etapa de potencia utiliza un altavoz de impedancia media.

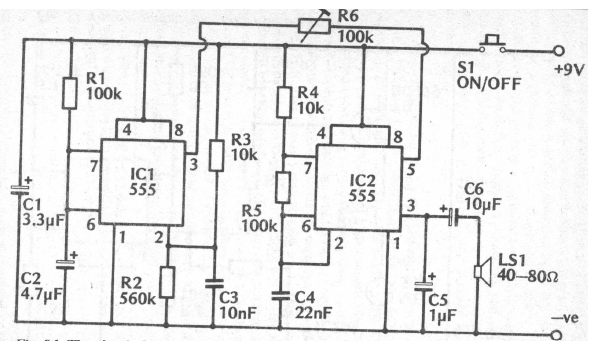

Bocina de dos tonos
Bocina de dos tonos
