Cargador NiCad (CIR22786S)

Written by: Newton C. Braga
Category: Banco de circuitos

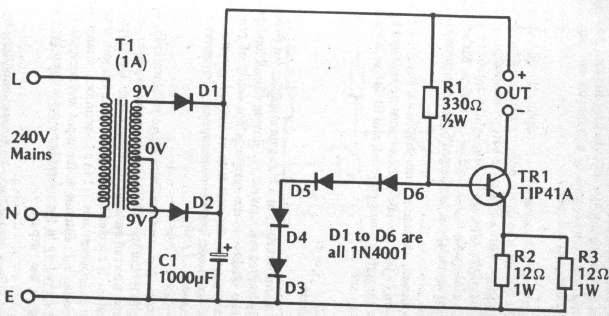

Este sencillo cargador de batería de NiCad se encontró en una documentación en inglés. Las resistencias R2 y R3 determinan la corriente de carga, en este caso alrededor de 400 mA.



Cargador NiCad
Cargador NiCad
