Antena Activa para Ondas Medias (CIR22780S)

Written by: Newton C. Braga
Category: Banco de circuitos

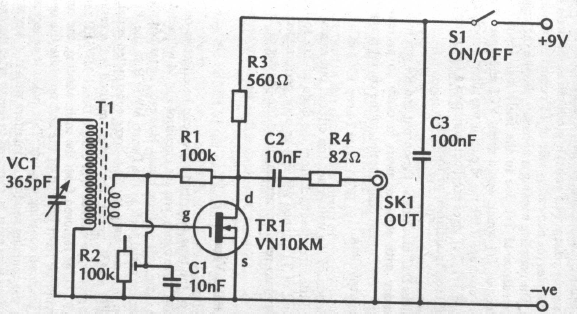

Este circuito consta de un amplificador para la banda de onda media. Lo encontramos en una publicación inglesa de los años 80. El MOSFET es del tipo de época, lo cual no es muy común hoy en día.



Antena Activa para Ondas Medias
Antena Activa para Ondas Medias
