Fuente simétrica para operacionales (CIR22763S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontrada en una documentación en inglés de 1989, esta fuente utiliza componentes actuales. Los puentes rectificadores se pueden reemplazar por puentes de diodos comunes.

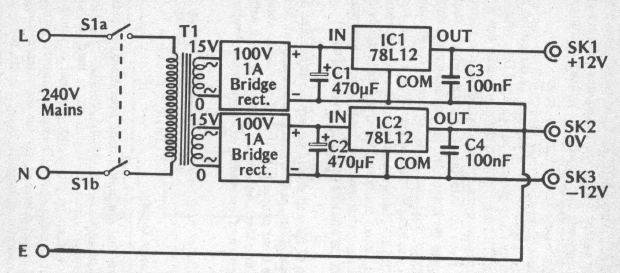

Fuente simétrica para operacionales
