Probador de tensión para coche (CIR22680S)

Written by: Newton C. Braga
Category: Banco de circuitos

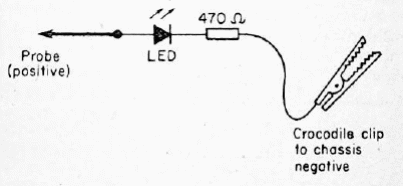

Este circuito simple indica si en un punto del cableado de un automóvil hay 12 V. La garra se fija en cualquier parte del chasis.



Probador de tensión para coche
Probador de tensión para coche
