Control de 3 posiciones con triac (CIR22666S)

Written by: Newton C. Braga
Category: Banco de circuitos

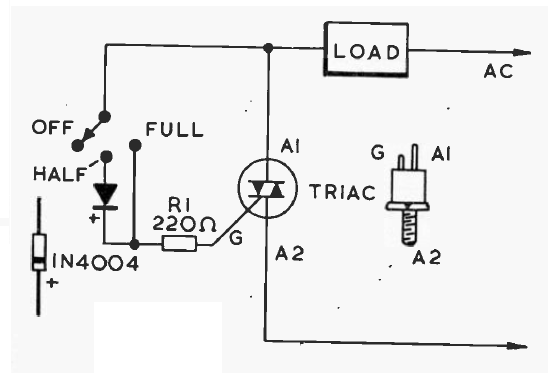

Este control de luz para lámparas incandescentes triac se puede ver en otra parte de este sitio. Esta versión es de una publicación inglesa de los años 90. El Triac puede ser cualquiera de la serie TIC.
