Control de potencia con Triac (CIR22665S)

Written by: Newton C. Braga
Category: Banco de circuitos

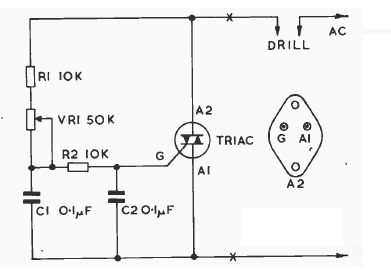

Esta es una configuración convencional con triac pero sin diac, lo que sería bueno en lugar de R2. En el inglés original, quizás se indicaba un triac con el diac incrustado, es decir, un quadrac.



Control de potencia con Triac
Control de potencia con Triac
