Pulsador DC con SCR (CIR22655S)

Written by: Newton C. Braga
Category: Banco de circuitos

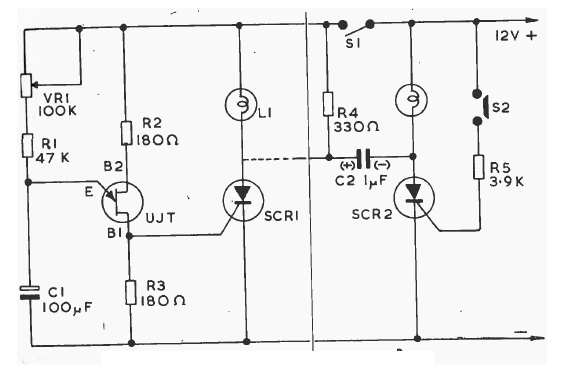

Este pulsador biestable formado por SCRs funciona con lámparas incandescentes de baja tensión. El unijuntura puede ser un 2N2646. La frecuencia se establece en VR1.
