Relé luz sensible 2 (CIR22650S)

Written by: Newton C. Braga
Category: Banco de circuitos

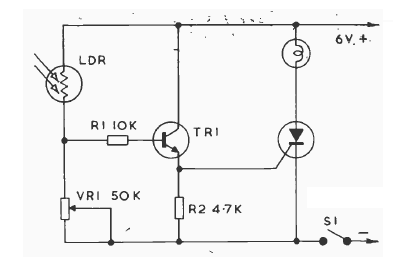

Esta versión funciona de manera opuesta a la anterior, activándose cuando la luz incide sobre el sensor. El ajuste de sensibilidad se realiza en VR1. El transistor puede ser BC548.



Relé luz sensible 2
