Detector de humedad (CIR22621S)

Written by: Newton C. Braga
Category: Banco de circuitos

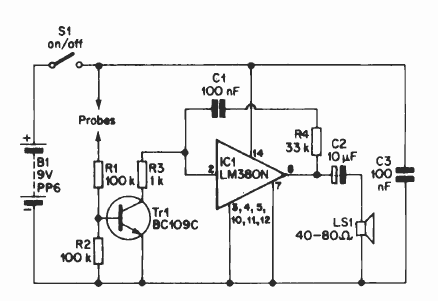

La base de este circuito es un LM380 que acciona un altavoz que emite sonido cuando se detecta humedad. Tenga en cuenta el uso de un altavoz de impedancia media.



Detector de humedad
Detector de humedad
