Voltímetro 2M ohms (CIR22597S)

Written by: Newton C. Braga
Category: Banco de circuitos

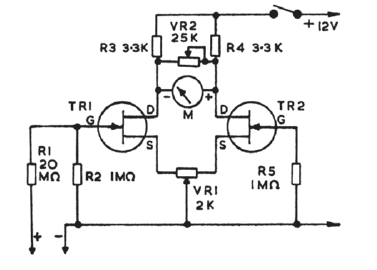

Este circuito básico de voltímetro tiene una resistencia de entrada de 2 M ohms. El instrumento es de 100 uA y los transistores pueden ser JFET de propósito general.



Voltímetro 2M ohms
Voltímetro 2M ohms
