Pre de bajo ruido para cinta casete (CIR22484S)

Written by: Newton C. Braga
Category: Banco de circuitos

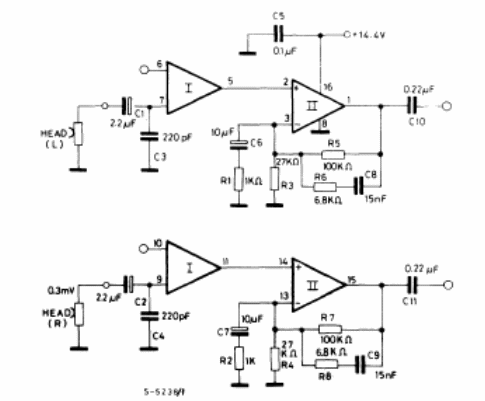

Este circuito estéreo de bajo ruido se tomó del manual de SGS sobre circuitos integrados de 1982. El circuito se usó en reproductores de casetes comerciales de época.



Pre de bajo ruido para cinta casete
Pre de bajo ruido para cinta casete
