Pre de bajo ruido (CIR22482S)

Written by: Newton C. Braga
Category: Banco de circuitos

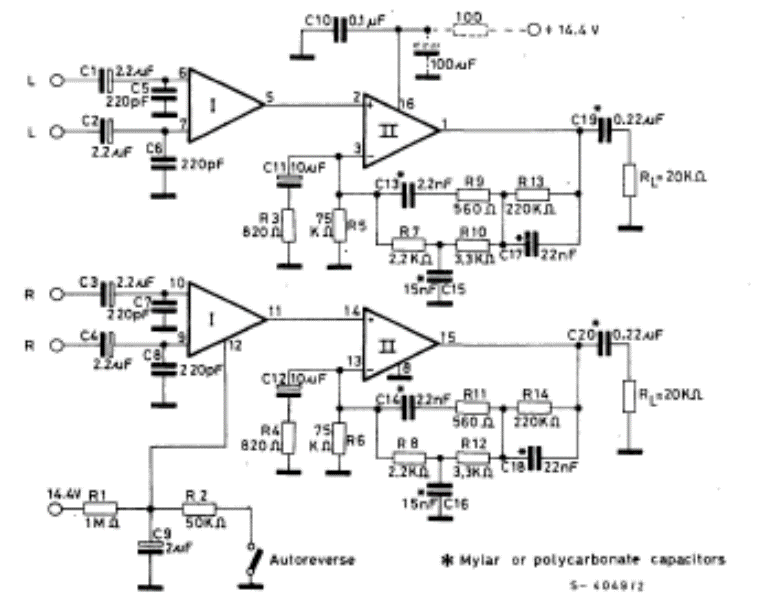

Este circuito con el TDA3410 se encontraba en el manual SGS de 1982. El circuito se usaba en radios de autos y reproductores de casetes de la época.



Pre de bajo ruido
Pre de bajo ruido | Haga click en la imagen para ampliar |
