Transmisor FM modulado (CIR22431S)

Written by: Newton C. Braga
Category: Banco de circuitos

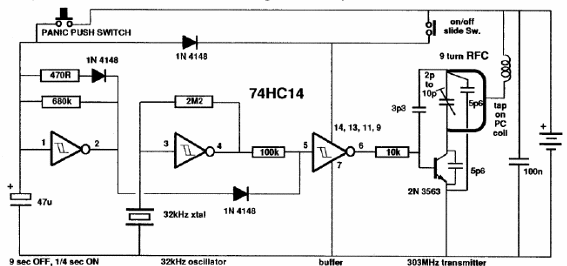

Encontrado en una publicación australiana de 1991, este circuito tiene un alcance de 15 metros cuando se alimenta con 5 V. La bobina se puede fabricar en la propia placa de circuito impreso.



Transmisor FM modulado
Transmisor FM modulado
