Booster para ondas medias (CIR22227S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito es de un libro de Hugo Gernsback de 1960. Los transistores son germanio de la época.

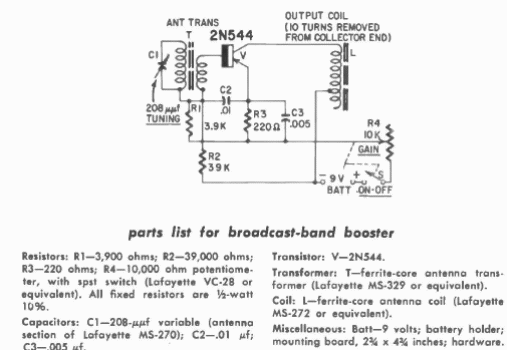

Booster para ondas medias
Booster para ondas medias
