Receptor AM (CIR22001S)

Written by: Newton C. Braga
Category: Banco de circuitos

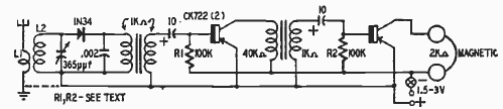

Este receptor de banda de onda media se encontró en un libro sobre transistores de 1954. La bobina de la antena es del tipo comercial en ese momento y el auricular debe ser magnético de alta impedancia.



Receptor AM
Receptor AM
